Security Camera brackets ( Mounting Cameras For Security )

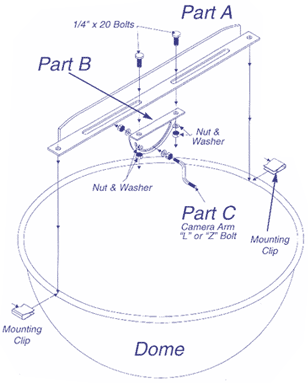

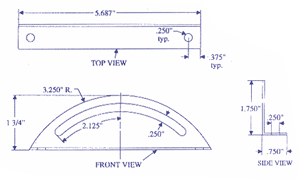

Part b |
 |
|
|
Available Sizes; Dimensions & Weight Chart |
Fits Dome |
Uses Parts |

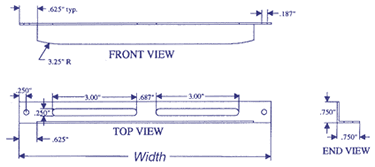

Width
(Part "A") |
Camera Arm
(Part "C") |
5.5" 360° CCTV |
B & C Only |
--- |
"L" bolt |
8" 360° CCTV |
A - b - C |
9" (228.6mm) |
"Z" bolt |
10" 360° CCTV |
A - b - C |
11" (279.4mm) |
"Z" bolt |
12" 360° CCTV |
A - b - C |
12.5 (317.5mm) |
"Z" bolt |
14" 360° CCTV |
A - b - C |
15" (381.5mm) |
"Z" bolt |
16" 360° CCTV |
A - b - C |
17" (381mm) |
"Z" bolt |
18" 360° CCTV |
A - b - C |
19.25" (488.95mm) |
"Z" bolt |
22" 360° CCTV |
A - b - C |
23" (584.2mm) |
"Z" bolt |
18" 180° 1/2 Dome |
B & C Only |
--- |
(3) "L" bolts |
26" 180° 1/2 Dome |
B & C Only |
--- |
(3) "L" bolts |
13" 90° 1/4 Dome |
B & C Only |
--- |
(2) "L" bolts |
18" 90° 1/4 Dome |
B & C Only |
--- |
(2) "L" bolts |
